Multilevel installation terminal block; 4 mm²; L/L; Push-in CAGE CLAMP®
Product details
| Rated voltage (III / 3) | 400 V |
| Rated impulse voltage (III / 3) | 6 kV |
| Rated current | 32 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Connection technology | Push-in CAGE CLAMP® |
| Actuation type | Push-in Operating tool |
| Connectable conductor materials | Copper |
| Nominal cross section | 2.5 mm² |
| Solid conductor | 0.25 … 4 mm² / 22 … 12 AWG |

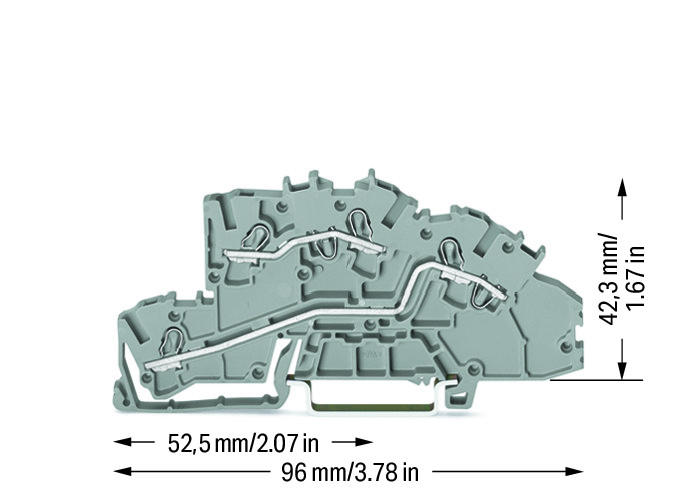

| Width | 5.2 mm / 0.205 in |
| Height from upper-edge of DIN-35 rail | 42.3 mm / 1.665 in |
| Depth | 96 mm / 3.78 in |
| Design | angled |
| Type of mounting | DIN-35 rail |
| Potential marking | L/L |
| Marking level | Center/side marking |
| Color | gray |
| Insulating material | Polyamide 66 (PA 66) |
| Fire load | 0.24 MJ |
| Weight | 13.608 g |
| Country of Origin | DE |
| GTIN | 4044918925594 |
| Customs Tariff No. | 85369010000 |
| Product Group | 22 (TOPJOB S) |
