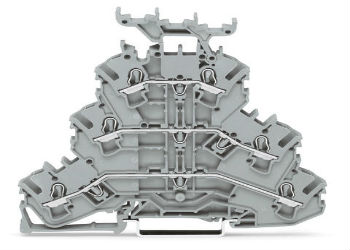

Triple-deck terminal block; Through/through/through terminal block; L/L/L; with marker carrier; suitable for Ex e II applications; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®

2002-32312002-3231.22002-3231.3


Product details

Rated voltage EN (Ex e II)440 V
Rated current (Ex e II)19 A
Rated current (Ex e II) with jumper17 A
Rated voltage (III / 3)500 V
Rated impulse voltage (III / 3)6 kV
Rated current24 A
Rated current (2)28 A
Legend (ratings)(III / 3) ≙ Overvoltage category III / Pollution degree 3
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)20 A
Rated voltage UL (Use Group C)300 V
Rated current UL (Use Group C)20 A
Rated voltage UL (Use Group D)600 V
Rated voltage CSA (Use Group B)600 V
Rated current CSA (Use Group B)20 A
Rated voltage CSA (Use Group C)600 V
Rated current CSA (Use Group C)20 A
Connection technologyPush-in CAGE CLAMP®
Number of connection points (connection type)3
Actuation typePush-in
Operating tool
Connectable conductor materialsCopper
Nominal cross section2.5 mm²

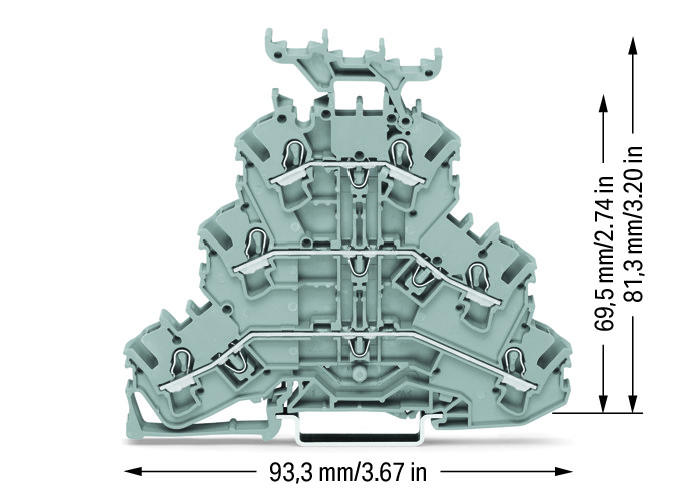

Width5.2 mm / 0.205 in
Height from upper-edge of DIN-35 rail81.3 mm / 3.201 in
Depth93.3 mm / 3.673 in
Designhorizontal
Type of mountingDIN-35 rail

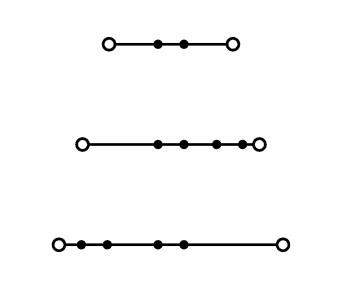

Potential markingL/L/L
Marking levelCenter/side marking
Colorgray
Insulating materialPolyamide 66 (PA 66)
Fire load0.336 MJ
Weight17.528 g
Country of OriginDE
GTIN4044918989756
Customs Tariff No.85369010000
Product Group22 (TOPJOB S)
